ใ How Benchmarking Saved Me From My Own "Optimizations"
Iโve been working on an React/Ink based application and need to adjust the content size reactively:

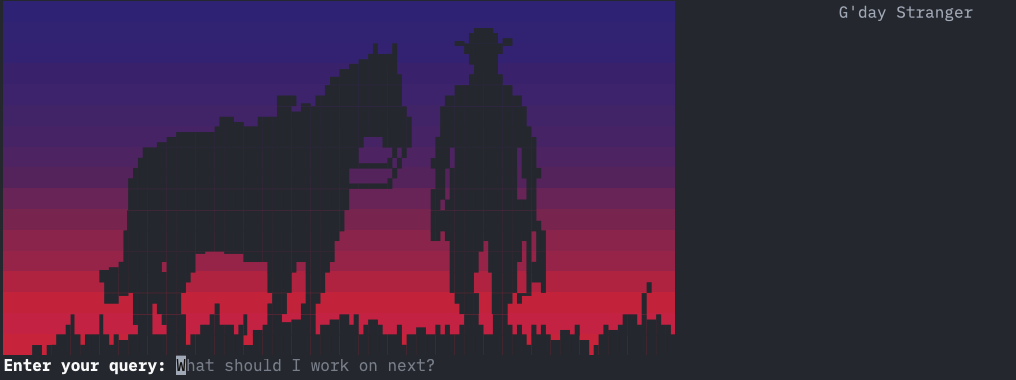

- Wide

- Normal

- Narrow

Ink uses string-width to understand what the expected width of each character will be in order to estimate the width a string will take up. The library uses another library: get-east-asian-width (eastAsianWidth(codePoints[i])) to determine the expected relative size of all unicode characters. It is calculated by generating the documented expected character size found in the : EastAsianWidth.txt file from the unicode spec. When I investigated the library I was surprised to see the library used a simple binary search, which is normally not the most effecient approach, over the generated lookup arrays.
get-east-asian-width utilities.js
/**
Binary search on a sorted flat array of [start, end] pairs.
@param {number[]} ranges - Flat array of inclusive [start, end] range pairs, e.g. [0, 5, 10, 20].
@param {number} codePoint - The value to search for.
@returns {boolean} Whether the value falls within any of the ranges.
*/
export const isInRange = (ranges, codePoint) => {
let low = 0;
let high = Math.floor(ranges.length / 2) - 1;
while (low <= high) {
const mid = Math.floor((low + high) / 2);
const i = mid * 2;
if (codePoint < ranges[i]) {
high = mid - 1;
} else if (codePoint > ranges[i + 1]) {
low = mid + 1;
} else {
return true;
}
}
return false;
};
Comparing Algorithms
I decided that it would be relatively simple to implement a more efficient lookup and got started comparing options:
binarySearch
This is the current libraries implementation modified minimally to take an range array and return a function that will perform a codepoint lookup against the array. The original function took the range array as well as the codepoint so this was an extremely simple change which makes it handy to swap between the other implementations.
export function binarySearch(flatRanges) {
return (codePoint) => {
let low = 0;
let high = Math.floor(flatRanges.length / 2) - 1;
while (low <= high) {
const mid = Math.floor((low + high) / 2);
const i = mid * 2;
if (codePoint < flatRanges[i]) {
high = mid - 1;
} else if (codePoint > flatRanges[i + 1]) {
low = mid + 1;
} else {
return true;
}
}
return false;
};
}
trieSearch
A trie is a special type of search tree with each branch representing the prefix of the search key. This implementation uses a flat trie tree with any ranges that contain more than 1 prefix appearing under both branches.
const key = (codePoint) => (codePoint >>> 8) & 0xff;
export function trieSearch(flatRanges) {
const map = new Map();
function addRange(key, range) {
const ranges = map.get(key) ?? map.set(key, []).get(key);
ranges.push(range);
}
const min = Math.min(...flatRanges);
const max = Math.max(...flatRanges);
for (let i = 0; i < flatRanges.length; i += 2) {
const range = [flatRanges[i], flatRanges[i + 1]];
const keyStart = key(range[0]);
const keyEnd = key(range[1]);
for (let k = keyStart; k <= keyEnd; k++) {
addRange(k, range);
}
}
return (codePoint) => {
if (codePoint < min || codePoint > max) {
return false;
}
return (
map
.get(key(codePoint))
?.find(([low, high]) => codePoint >= low && codePoint <= high) !==
undefined
);
};
}
This flat trie tree is not optimal for branches with a large number of nodes. The histogram below is a visual representation of the number of ranges that fit into each branch of the trie tree for characters which are wide.
An easy optimization would be to increase the depth of branches where we have a heavy concentration of ranges and limit the node count to less than 7. I have not chosen to pursue this further because of the performance metrics of the entire library suggest that the lookup is not the bottle-neck (see benchmarking library entrypoints).
setSearch
This is a simple solution that uses the native javascript set and adds all of the codePoints within the ranges to the set. This allows us to use set.has to determine if the codepoint exists in the set.
export function setSearch(flatRanges) {
const set = new Set();
for (let i = 0; i < flatRanges.length; i += 2) {
const from = flatRanges[i];
const to = flatRanges[i + 1];
for (let j = from; j <= to; j++) {
set.add(j);
}
}
return (codePoint) => set.has(codePoint);
}
bitflagSearch
This lookup represents the Set in a Uint32Array with each bit representing a value in the codepoint. The array has a bit for all codepoints between 0 and the last and max value for the collection of codepoints in the range.
export function bitflagSearch(flatRanges) {
const max_range = flatRanges.at(-1);
const flags = new Uint32Array((max_range >>> 5) + 1);
for (let i = 0, length = flatRanges.length; i < length; i += 2) {
const from = flatRanges[i];
const to = flatRanges[i + 1];
for (let j = from; j <= to; j++) {
flags[j >>> 5] |= 1 << (j & 31);
}
}
return (codePoint) =>
((flags[codePoint >>> 5] >>> (codePoint & 31)) & 1) === 1;
}
offsetBitflagSearch
An offset bitflag search uses a small memory optimization of the bitflagSearch which by eliminating empty Uint32 values from the start of the Array.
We achieve this by starting the Uint32Array at the smallest bucket (WORD) which contains a bit that corresponds to a an active codepoint and storing its offset from 0.
const WORD = 0xff_ff_ff_ff;
export function offsetBitflagSearch(flatRanges) {
const [min, max] = [flatRanges.at(0), flatRanges.at(-1)];
const [firstWord, lastWord] = [min >>> 5, (max >>> 5) + 1];
const flags = new Uint32Array(lastWord - firstWord);
const offset = firstWord << 5;
for (let i = 0, length = flatRanges.length; i < length; i += 2) {
const from = flatRanges[i] - offset;
const to = flatRanges[i + 1] - offset;
const fromWord = from >>> 5;
const toWord = to >>> 5;
if (fromWord === toWord) {
flags[fromWord] |= (WORD << (from & 31)) & (WORD >>> (31 - (to & 31)));
} else {
flags[fromWord] |= WORD << (from & 31);
flags.fill(WORD, fromWord + 1, toWord);
flags[toWord] |= WORD >>> (31 - (to & 31));
}
}
return (codePoint) => {
if (codePoint < min || codePoint > max) {
return false;
}
return ((flags[(codePoint - offset) >>> 5] >>> (codePoint & 31)) & 1) !== 0;
};
}
Testing the Algorithms
In order to confirm the algorithms maintain behavior and do not introduce any regressions I ran the following test:
import test from "ava";
import {
bitflagSearch,
biSearch,
offsetBitflagSearch,
setSearch,
trieSearch,
} from "./lookup.js";
import {
ambiguousRanges,
fullwidthRanges,
halfwidthRanges,
narrowRanges,
wideRanges,
} from "./lookup-data.js";
const ranges = Object.entries({
ambiguousRanges,
fullwidthRanges,
halfwidthRanges,
narrowRanges,
wideRanges,
});
const lookups = Object.entries({
bitflagSearch,
offsetBitflagSearch,
setSearch,
trieSearch,
});
const max_range = Math.max(
ambiguousRanges.at(-1),
fullwidthRanges.at(-1),
halfwidthRanges.at(-1),
narrowRanges.at(-1),
wideRanges.at(-1),
);
for (let [rangeName, range] of ranges) {
const binarySearch = biSearch(range);
for (let [lookupName, lookup] of lookups) {
test(`${lookupName}(${rangeName}) matches binarySearch(${rangeName})`, (t) => {
const lookupDiff = [];
const search = lookup(range);
for (let codePoint = 0; codePoint <= max_range + 1; codePoint++) {
if (search(codePoint) !== binarySearch(codePoint)) {
lookupDiff.push(
`Expected ${lookupName}(${codePoint}) === ${binarySearch(codePoint)}`,
);
}
}
t.deepEqual(lookupDiff, [], "Expect no difference in lookup values");
});
}
}
Memory Usage of the Algorithms
Array size of Uint32 used for each range:
| Range | offsetBitflagSearch | bitflagSearch |
|---|---|---|
| ambiguousRanges | 34811 | 34816 |
| fullwidthRanges | 1664 | 2048 |
| halfwidthRanges | 1787 | 2048 |
| narrowRanges | 332 | 333 |
| wideRanges | 8056 | 8192 |
Benchmarking the Algorithms
In order to compare the performance of algorithms I set up a test benchmark with interchangable search algorithms:
lookup-benchmark.js
import { run, bench, summary } from "mitata";
import {
bitflagSearch,
binarySearch,
offsetBitflagSearch,
setSearch,
trieSearch,
} from "./lookup.js";
import { ambiguousRanges } from "./lookup-data.js";
const searches = Object.entries({
binarySearch,
bitflagSearch,
offsetBitflagSearch,
setSearch,
trieSearch,
});
const max_range = ambiguousRanges.at(-1);
summary(() => {
for (const [searchName, searchFunction] of searches) {
bench(`${searchName}`, function* () {
const lookup = searchFunction(ambiguousRanges);
yield () => {
let checksum = 0;
for (let cp = 0; cp <= max_range; cp++) {
checksum ^= lookup(cp);
}
return checksum;
};
});
}
});
await run();
Notice the checksum above. This is an important feature of the benchmark which I will discuss below in potential pitfalls.
The results are here:
% npm run lookup-benchmark
> get-east-asian-width@1.5.0 lookup-benchmark
> node --expose-gc lookup-benchmark.js
clk: ~4.39 GHz
cpu: Apple M4
runtime: node 25.7.0 (arm64-darwin)
benchmark avg (min โฆ max) p75 / p99 (min โฆ top 1%)
------------------------------------------- -------------------------------
binarySearch 28.31 ms/iter 28.33 ms โ
(28.23 ms โฆ 28.63 ms) 28.42 ms โโ โ โ โ โ
(632.00 b โฆ 27.51 kb) 2.04 kb โโโโโโโโโโโโโโโโโโโโโ
bitflagSearch 3.66 ms/iter 3.69 ms โ
(3.48 ms โฆ 4.34 ms) 4.23 ms โโ
(736.00 b โฆ 6.81 kb) 768.33 b โโโโโโโ
โโโโโโโโโโโโโโ
offsetBitflagSearch 3.65 ms/iter 3.65 ms โ
(3.49 ms โฆ 4.25 ms) 4.11 ms โ
(448.00 b โฆ 8.72 kb) 577.84 b โโโโโโโโโโโโโโโโโโโโโ
setSearch 19.32 ms/iter 19.88 ms โโ
(18.58 ms โฆ 19.96 ms) 19.94 ms โโโโโ โ โโ
(448.00 b โฆ 6.53 kb) 616.65 b โโโโโโโโโโโโโโโโโโโโโ
trieSearch 9.64 ms/iter 9.72 ms โ
(9.27 ms โฆ 10.08 ms) 10.08 ms โโ โ โ
(448.00 b โฆ 6.53 kb) 532.32 b โโโโโโโโโโโโโโโโโโโโโ
summary
offsetBitflagSearch
1x faster than bitflagSearch
2.64x faster than trieSearch
5.29x faster than setSearch
7.75x faster than binarySearch
Benchmarking the library entrypoints
There are some clear winners when comparing the algorithms in this way but how much faster will the library in common use? In order to answer that question I developed the following performance test:
benchmark.js
import { run, bench, summary } from "mitata";
import { eastAsianWidth } from "./index.js";
import { load, binarySearch, bitflagSearch } from "./lookup.js";
const corpora = Object.entries({
en: "Software engineering is the systematic application of engineering approaches to the development of software. It encompasses a wide range of disciplines, from requirement analysis and system design to implementation, testing, and maintenance. High-performance computing requires careful optimization of data structures, algorithms, and memory management to ensure efficient execution at scale. The quick brown fox jumps over the lazy dog repeatedly while developers analyze the underlying bytecode.",
zh: "่ฝฏไปถๅทฅ็จๆฏๅฐๅทฅ็จๅญฆ็ๆนๆณ็ณป็ปๅฐๅบ็จไบ่ฝฏไปถๅผๅ็่ฟ็จใๅฎๆถต็ไบไป้ๆฑๅๆใ็ณป็ป่ฎพ่ฎกๅฐไปฃ็ ๅฎ็ฐใๆต่ฏๅ็ปดๆค็ๅนฟๆณ้ขๅใๅจ้ซๆง่ฝ่ฎก็ฎ็ฏๅขไธญ๏ผๅฟ
้กปไป็ปไผๅๆฐๆฎ็ปๆใ็ฎๆณๅๅ
ๅญ็ฎก็๏ผไปฅ็กฎไฟๅจๅคง่งๆจก่ฟ่กๆถ็ๆง่กๆ็ใไธไบๅญ็ฌฆ็ๅฎฝๅบฆๅค็ๅจ็ป็ซฏๆจกๆๅจใๆๆฌ็ผ่พๅจๅๅฝไปค่ก็้ขไธญๅฐคไธบๅ
ณ้ฎ๏ผๅ ไธบๅ
จ่งๅๅ่งๅญ็ฌฆๅจๅฑๅนไธๅ ๆฎ็็ฉบ้ดไธๅใไฝ ๅฅฝ๏ผ่ฟๆฏไธไธชๅ
ๅซๅค็งๅญ็ฌฆ็ๆต่ฏๆๆฌใ",
es: "La ingenierรญa de software es la aplicaciรณn sistemรกtica de enfoques de ingenierรญa para el desarrollo de software. Abarca una amplia gama de disciplinas, desde el anรกlisis de requisitos y el diseรฑo del sistema hasta la implementaciรณn, las pruebas y el mantenimiento. La informรกtica de alto rendimiento requiere una cuidadosa optimizaciรณn de las estructuras de datos, los algoritmos y la gestiรณn de la memoria para garantizar una ejecuciรณn eficiente a gran escala. El pingรผino viviรณ en el รกrtico; maรฑana serรก un gran dรญa para programar.",
emoji:
"๐๐๐ฉโ๐ป๐ณ๏ธโ๐๐ฅโจ๐๐๐๐๐ฃ๐โ๏ธ๐๐โ๏ธ๐๐ค๐๐ญโค๏ธ๐๐๐๐ช๐โโ๏ธ๐ถโโ๏ธ๐ถ๐ฑ๐ผ๐๐ธ๐บ๐ฒ๐ตโก๏ธ๐ง๐ช๏ธ๐ฑ๐ปโ๏ธ๐น๏ธ๐ก๐โ๏ธ๐๐จโ๐ฉโ๐งโ๐ฆ๐คฆ๐ฝโโ๏ธ๐บ๐ณ๐ฅท๐ฟ๐งโโ๏ธ๐งโโ๏ธ๐งโโ๏ธ๐งโโ๏ธ๐งโโ๏ธ",
mixed:
"Agent v2.0 ๐: ๆฌข่ฟไฝฟ็จ (Welcome to) the terminal framework. Loading configuration... [100%] โ
. ็จๆท้
็ฝฎๅทฒๅ ่ฝฝใWarning: ๅ
ๅญไฝฟ็จ็ (Memory usage) exceeds 80% โ ๏ธ. Proceeding with optimization รกrtico.",
});
const algorithms = Object.entries({ binarySearch, bitflagSearch });
for (const [language, initialText] of corpora) {
summary(() => {
for (const [lookupName, lookup] of algorithms) {
bench(`${lookupName}::${language}`, function* (state) {
const size = state.get("size");
const codePoints = [...text.repeat(size)].map((c) => c.codePointAt(0));
load(lookup);
yield () => {
return codePoints.reduce((sum, cp) => sum + eastAsianWidth(cp));
};
}).range("size", 256, 1024);
}
});
}
await run();
We must ensure the results of library are returned in the yield block so that V8 wont optimize out unused work.
This benchmark shows that, in normal usage, the lookup algorithm is not a bottleneck and has a negligible effect on the performance of the library.
% npm run benchmark
> get-east-asian-width@1.5.0 benchmark
> node --expose-gc benchmark.js
clk: ~4.40 GHz
cpu: Apple M4
runtime: node 25.7.0 (arm64-darwin)
benchmark avg (min โฆ max) p75 / p99 (min โฆ top 1%)
------------------------------------------- -------------------------------
binarySearch::en 656.08 ยตs/iter 660.75 ยตs โโ
(601.54 ยตs โฆ 701.79 ยตs) 680.71 ยตs โโโโ
(504.00 b โฆ 2.09 mb) 2.57 kb โโโโโโโโโโโโโโโโโโโโโ
binarySearch::en 2.64 ms/iter 2.66 ms โโ โ
โ
(2.55 ms โฆ 2.80 ms) 2.75 ms โ
โโโโโโโ
(504.00 b โฆ 2.48 mb) 9.97 kb โโโโโ
โโโโโโโโโโโโ
โโโโ
bitflagSearch::en 654.03 ยตs/iter 657.96 ยตs โ
(604.92 ยตs โฆ 702.04 ยตs) 681.67 ยตs โโโ
(504.00 b โฆ 2.31 mb) 2.68 kb โโโโโโโโโโโโโโโโโโโโโ
bitflagSearch::en 2.64 ms/iter 2.66 ms โโโ
(2.56 ms โฆ 2.83 ms) 2.71 ms โโโโโ โ
(504.00 b โฆ 2.39 mb) 9.67 kb โโโโโโโโโโโโโโโโ
โโโโโ
summary
binarySearch::en
1โฆ1x faster than bitflagSearch::en
------------------------------------------- -------------------------------
binarySearch::zh 451.21 ยตs/iter 456.67 ยตs โโโโ
(408.88 ยตs โฆ 493.58 ยตs) 475.04 ยตs โโโโโ
(504.00 b โฆ 1.73 mb) 1.62 kb โโโโโโโโโโโโโโโโโโโโโ
binarySearch::zh 1.80 ms/iter 1.82 ms โ
(1.69 ms โฆ 1.87 ms) 1.86 ms โโโโโ
(504.00 b โฆ 1.56 mb) 4.54 kb โโโโโโโโโ
โโโโโโโโโโโโ
bitflagSearch::zh 453.90 ยตs/iter 459.58 ยตs โ
(409.21 ยตs โฆ 628.54 ยตs) 478.92 ยตs โโโโ
(504.00 b โฆ 1.65 mb) 1.76 kb โโโโโโโโโโโโโโโโโโ
โโโ
bitflagSearch::zh 1.81 ms/iter 1.83 ms โโโโ
(1.69 ms โฆ 1.88 ms) 1.87 ms โโโโโโ
(504.00 b โฆ 1.52 mb) 4.48 kb โโโโโโโโโโ
โโโโโโโโโโโ
summary
binarySearch::zh
+1.01โฆ+1.01x faster than bitflagSearch::zh
------------------------------------------- -------------------------------
binarySearch::es 729.43 ยตs/iter 736.25 ยตs โ
(684.96 ยตs โฆ 797.29 ยตs) 765.67 ยตs โโโโโ
โ
(504.00 b โฆ 2.13 mb) 2.74 kb โโโโโโโโโโโโโโโโ
โโโโโ
binarySearch::es 2.91 ms/iter 2.93 ms โ
โโโ
(2.80 ms โฆ 2.99 ms) 2.97 ms โ
โโโโโโ
(504.00 b โฆ 1.96 mb) 8.75 kb โโโโโโโโโโโโโโโโโโโโโ
bitflagSearch::es 729.47 ยตs/iter 736.21 ยตs โโ
(680.67 ยตs โฆ 833.13 ยตs) 760.75 ยตs โโโโ โ
(504.00 b โฆ 2.27 mb) 3.27 kb โโโโโโโโโโ
โโโโโโโโโโโ
bitflagSearch::es 2.91 ms/iter 2.93 ms โโ
(2.82 ms โฆ 3.07 ms) 2.99 ms โโโโโโโ
(504.00 b โฆ 1.76 mb) 7.91 kb โโโโโโโ
โโโโโโโโโโโ
โโโ
summary
bitflagSearch::es
1โฆ1x faster than binarySearch::es
------------------------------------------- -------------------------------
binarySearch::emoji 671.55 ยตs/iter 684.33 ยตs โ
โ โโโโ
(632.33 ยตs โฆ 804.17 ยตs) 721.96 ยตs โ โโโโโโโโโโ
โโ
(120.00 b โฆ 1.19 mb) 2.20 kb โโโโโโโโโโโโโโโโโโ
โ
โโ
binarySearch::emoji 2.70 ms/iter 2.75 ms โโโโ
(2.55 ms โฆ 2.82 ms) 2.80 ms โ
โโ โโโโโโ
(120.00 b โฆ 1.21 mb) 4.84 kb โโโโโโโโโโโโโโโโโโโโโ
bitflagSearch::emoji 677.12 ยตs/iter 690.25 ยตs โโโ
(632.71 ยตs โฆ 826.08 ยตs) 722.71 ยตs โโโโโโโโโ
(120.00 b โฆ 1.16 mb) 1.52 kb โโโโโโโโโโโโโโโโโโ
โโโ
bitflagSearch::emoji 2.74 ms/iter 2.78 ms โโโ
(2.56 ms โฆ 2.97 ms) 2.94 ms โ
โโโโโ
โ
(120.00 b โฆ 1.15 mb) 4.67 kb โโโโโโโโโโโโโโโโโโโโโ
summary
binarySearch::emoji
+1.01โฆ+1.01x faster than bitflagSearch::emoji
------------------------------------------- -------------------------------
binarySearch::mixed 308.42 ยตs/iter 313.08 ยตs โโโ
(272.42 ยตs โฆ 468.42 ยตs) 336.04 ยตs โ
โโโโ
(120.00 b โฆ 2.48 mb) 230.04 kb โโโโโโโ
โโโโโโโโโโ
โโโโ
binarySearch::mixed 1.23 ms/iter 1.24 ms โโโ
(1.15 ms โฆ 1.30 ms) 1.28 ms โโโโโโโโโ
(120.00 b โฆ 1.65 mb) 3.06 kb โโโโโโโโโโโโโโโโโโโโโ
bitflagSearch::mixed 308.65 ยตs/iter 313.37 ยตs โโ
(275.29 ยตs โฆ 412.12 ยตs) 334.42 ยตs โโโโโ
(120.00 b โฆ 2.48 mb) 229.96 kb โโโโโโโโ
โโโโโโโโโ
โโโโ
bitflagSearch::mixed 1.24 ms/iter 1.25 ms โโโ
(1.17 ms โฆ 1.30 ms) 1.29 ms โ
โโโโโโโ
(120.00 b โฆ 1.78 mb) 3.31 kb โโโโโโโโโโโโโโโโโโโโโ
summary
binarySearch::mixed
+1.01โฆ1x faster than bitflagSearch::mixed
Conclusions
It pays to verify your assumptions when trying to optimize an algorithm. I initially assumed that replacing the binary search with a more effecient algorithm would result in better performance. But as the benchmarks showed, theoretical efficiency doesnโt always beat practical simplicity. Iโm glad I took the time to measure the actual impact before going ahead with a more complex solution.
